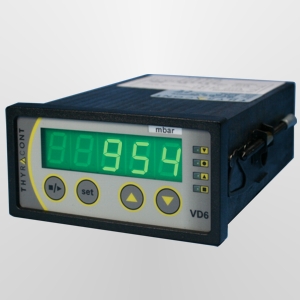

VD6 – 1 Channel Vacuum Display And Control Unit
Absolute Pressure 1400 mbar to 1 x 10-4 mbar (=hPa), 1050 Torr to 1 x 10-4 Torr
The Thyracont VD6 universal vacuum indicator and controller is designed for panel mounting. A relay monitor on the front panel allows continuous operation control of the two switch points.
Benefits
- 2- or 3-state-control: 2 relay switch points (switch-over), adjustable over the entire range
- Intuitive operation
- Large, high-contrast LED-display
- Thyracont transducers with 4 – 20 mA signal output allow long cable runs
- Foil-protected front panel
- DIN case 96 x 48 mm for panel mounting
- USB interface for process control and documentation
- Available as complete set with Thyracont transducer type VSC43MA4 (1400 – 1 mbar) or with transducer type VSP63MA4 (1000 – 1 x 10-4 mbar).
Typical Applications
- Industrial vacuum plants (e. g. evacuation systems, short path distillation, thin film vaporizer)
- Vacuum furnaces, vacuum drying
- Mechanical engineering
- Analysis instruments
- Packing machines
- Chemical engineering
