RC.4M Høj vakuumpumpe

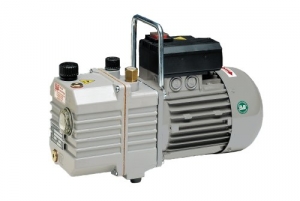

rc4_bigInformation about: RC.4M – RC.4D

These models were specifically designed for the Air conditioning and refrigeration sector and for laboratory applications. The single or double stage version provide optimal final pressure. A coupling drive connecting motor and pump ensures reliable operation, long life and easy maintenance.
Standard equipment includes:

  • Thermal protector (135°C 1~ only)
  • Handle for transport
  • Gas Ballast
  • On/off switch (1~ only)
  • Cable with schuko plug (1~ only)
  • Check valve (RC.4M)/ Venting system (RC.4D)
  • Pack of AV68 oil
  • Shock mounts

A version suitable for connection with standard electric motors M71/4 B14 according to IEC-72 is also available.

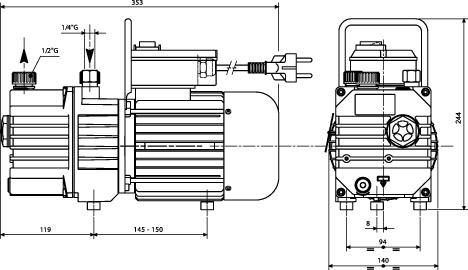

schema_RC4M_RC4D

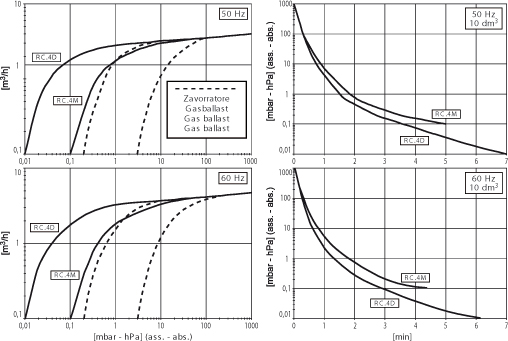

grafico_RC4M_RC4D

Downloads:
Generel beskrivelse
Specifikationer
